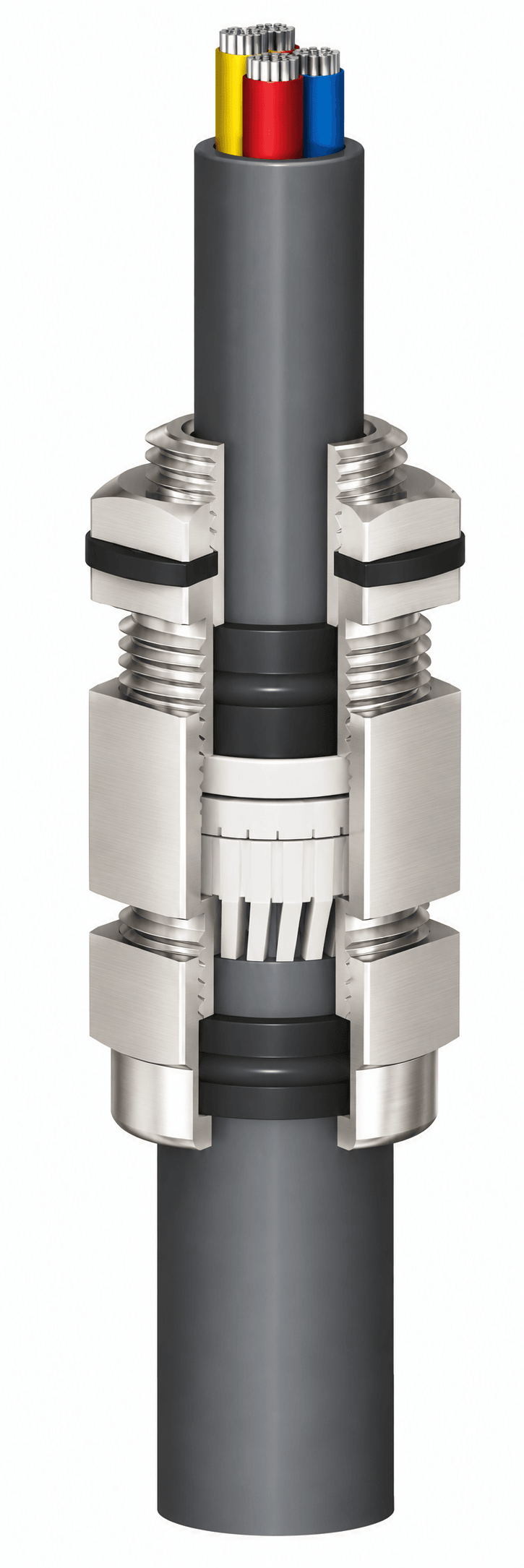

Double Compression Weather Proof Cable Glands
Applications
- Weather Proof Double Compression Glands are designed to provide weatherproof and dustproof protection with IP66 performance under normal climatic conditions.
- The use of suitable PVC shrouds provides additional protection where the glands are exposed to corrosive atmospheric conditions.
Technical Details
| Specification | Value |
|---|---|
| Body Material | Brass (IS-319) Standard (Al. / S.S. / M.S. also available) |
| Surface Finish | Nickel Plated Standard (Chrome Natural Brass / Other finishes on request) |
| Entry Threads | BSC Standard (PG / Metric / NPT / BSP / also available) |
| Sealing Rubber Ring | Nitrile / Neoprene |
| Gland Standard | BS 6121 |
| Ingress Protection | IP 66 |
| Accessories | Compatible accessories can include PVC shrouds, adaptors, reducers, stopping plugs, etc. according to the selected gland and customer requirement. |

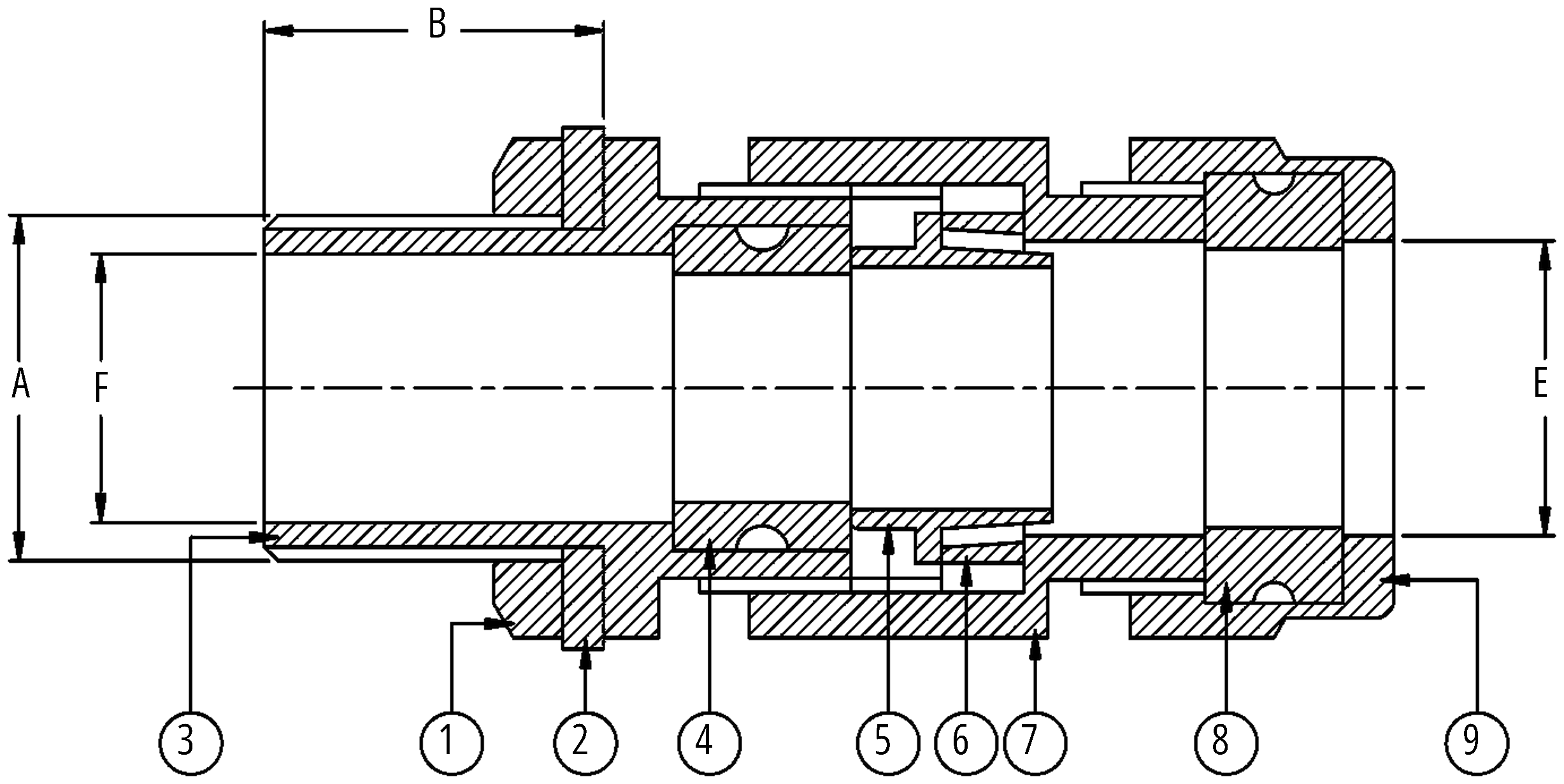

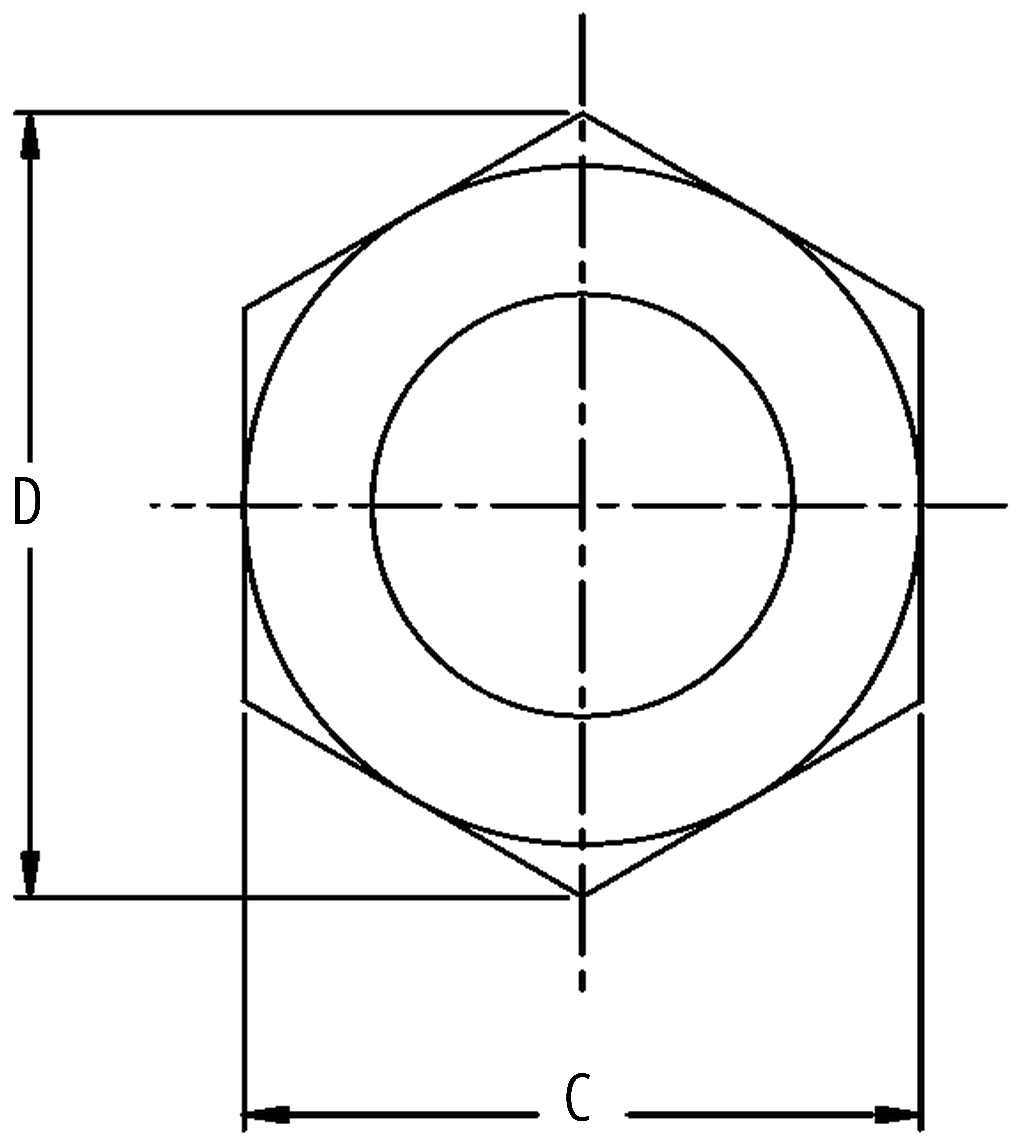

Technical Drawing
Size Chart
| Suitable Cable Overall Dia | CABNIX Code | A Nipple Entry | B Length | C (A/F) | D (A/C) | E Dia. | F Dia. | |
|---|---|---|---|---|---|---|---|---|
| From | To | CXW Series | Inches | mm | mm | mm | Ø mm | Ø mm |
| 9.0 | 12.0 | CXW 01SS | 3/4" | 15.0 | 22.0 | 25.0 | 16.0 | 14.0 |
| 12.0 | 16.5 | CXW 01S | 3/4" | 15.0 | 25.0 | 29.0 | 17.5 | 14.5 |
| 16.5 | 18.5 | CXW 01 | 3/4" | 15.0 | 28.0 | 32.0 | 20.0 | 14.5 |
| 16.5 | 18.5 | CXW 01A | 1" | 15.0 | 28.0 | 32.0 | 20.0 | 20.5 |
| 18.5 | 20.0 | CXW 02 | 1" | 15.0 | 29.5 | 33.0 | 21.0 | 19.0 |
| 18.5 | 20.0 | CXW 02A | 3/4" | 15.0 | 29.5 | 33.0 | 21.0 | 15.0 |
| 20.0 | 23.0 | CXW 03 | 1" | 15.0 | 31.0 | 36.0 | 23.5 | 20.0 |
| 23.0 | 26.0 | CXW 04 | 1" | 15.0 | 36.0 | 41.0 | 27.0 | 20.0 |
| 23.0 | 26.0 | CXW 04A | 1.1/4" | 15.0 | 36.0 | 41.0 | 27.0 | 26.0 |
| 26.0 | 30.0 | CXW 05 | 1.1/4" | 15.0 | 40.0 | 46.0 | 32.0 | 26.0 |
| 26.0 | 30.0 | CXW 05A | 1.1/2" | 15.0 | 40.0 | 46.0 | 32.0 | 33.0 |
| 30.0 | 33.0 | CXW 06 | 1.1/2" | 15.0 | 46.0 | 52.5 | 35.0 | 31.0 |
| 30.0 | 33.0 | CXW 06A | 1.1/4" | 15.0 | 46.0 | 52.5 | 35.0 | 27.0 |
| 33.0 | 37.0 | CXW 07 | 1.1/2" | 15.0 | 48.5 | 56.0 | 39.0 | 32.0 |
| 37.0 | 41.0 | CXW 08 | 2" | 15.0 | 55.5 | 64.0 | 44.0 | 43.5 |
| 41.0 | 46.0 | CXW 09 | 2" | 15.0 | 56.5 | 65.0 | 47.0 | 42.0 |
| 46.0 | 52.0 | CXW 010 | 2" | 20.0 | 65.0 | 75.0 | 54.0 | 45.0 |
| 46.0 | 52.0 | CXW 010A | 2.1/2" | 20.0 | 66.0 | 76.0 | 54.0 | 55.0 |
| 52.0 | 54.0 | CXW 011S | 2.1/2" | 20.0 | 71.0 | 82.0 | 61.0 | 56.0 |
| 54.0 | 61.0 | CXW 011 | 2.1/2" | 20.0 | 78.0 | 90.0 | 64.0 | 56.0 |
| 61.0 | 66.0 | CXW 012 | 3" | 20.0 | 84.0 | 96.0 | 67.0 | 64.0 |
| 66.0 | 72.0 | CXW 013A | 3" | 20.0 | 90.0 | 103.0 | 76.0 | 68.0 |
| 72.0 | 78.0 | CXW 013 | 3.1/4" | 20.0 | 98.5 | 113.0 | 80.0 | 74.0 |
| 78.0 | 84.0 | CXW 014 | 3.1/2" | 20.0 | 102.0 | 117.0 | 90.0 | 78.0 |
| 84.0 | 94.0 | CXW 015 | 4" | 20.0 | 115.0 | 132.0 | 97.0 | 90.0 |
| 94.0 | 104.0 | CXW 016 | 4.1/2" | 20.0 | 126.0 | 145.0 | 106.0 | 102.0 |
